Sampling Cylinder & Gas Sampling Bombs
FAV range of Sampling Cylinder and Sample bombs are designed to provide safe containment for storage, examination and transportation of both liquids and gases. Available in Single ended , double ended and flat ended. Natural Gas Sampling bombs are perfect for sampling corrosive gas and pressurized gas. Double ended Sampling cylinders are most commonly used. We have ability to customize Sampling Cylinders to suit your exact needs. The range is designed for and used across the world in various industries, including petrochemical refineries and well sites, analytic laboratories , sensitive chemical , alternative fuel technologies, and manufacturing.
FAV is the most reputed manufacturer and exporter of these sample cylinders and Gas Sampling Bombs
Material availability for Sampling Cylinders
FAV Sampling Cylinder are available in Stainless Steel 304 ( SS 304 ), Stainless Steel 316 Cylinder ( SS 316), Titanium Grade 2 (Ti Gr 2), Monel 400 , Monel 500, Hastelloy C 276, Incoloy 800 ( Alloy 800 ), Inconel 600, Inconel 625, Inconel 825, Duplex 2205 and Super Duplex 32750 Sampling Cylinders.
For Dedicated page on Titanium Sample Cylinder click here.
For Dedicated page on Duplex 2205 sample Cylinders and Super Duplex 32750 Sampling click here.
Features
1) Customize your own Sampling Cylinder that fits best in your process. No two sample cylinders are same. We offer 100 % customization.
2) Entire System available which include Pressure Gauges, Needle Valves and Precision Pipe Fittings.
3) Sampling cylinders in different capacity of 150 cc (150 ml) , 300 cc (300 ml), 500 cc (500 ml), 1000 cc (1 ltr), 1500 cc (1.5 ltr), 2250 cc (2.25 liter), 4000 cc (4 litre), 5000 cc (5 ltr), 10000 cc (10 liter). In some cases even 15000 cc(1 litre)
4) Variety of end connections includes Male / Female NPT, BSPT, BSPP
5) Dust Cap provided
6) Standard Pressure Rating of 500 psi ,1000 psi ,2000 psi ,3000 psi and 6000 psi. High Pressure Sample Cylinder Rating upto 10000 psi/15000 psi
Data sheet for Sampling Cylinder 1800 psi
PART No. | P NPT – F | Pressure Rating PSIG | Capacity (Internal Vol.) cm 3±5% | L mm | D mm |
FSC150-4N2 | 1/4” | 1800 | 150 | 135 | 60.3 |
FSC300-4N2 | 1/4” | 1800 | 300 | 225 | 60.3 |
FSC400-4N2 | 1/4” | 1800 | 400 | 290 | 60.3 |
FSC500-4N2 | 1/4” | 1800 | 500 | 350 | 60.3 |
FSC1000-4N2 | 1/4” | 1800 | 1000 | 275 | 88.9 |
FSC2250-4N2 | 1/4” | 1800 | 2250 | 435 | 114.3 |
FSC3785-4N2 | 1/4” | 1800 | 3785 | 680 | 114.3 |
FSC1000-8N2 | 1/2” | 1800 | 1000 | 275 | 88.9 |
FSC2250-8N2 | 1/2” | 1800 | 2250 | 435 | 102 |
FSC3785-8N2 | 1/2” | 1800 | 3785 | 680 | 102 |
FSC1000-12N2 | 3/4” | 1800 | 1000 | 275 | 88.9 |
FSC2250-12N2 | 3/4” | 1800 | 2250 | 435 | 102 |
FSC3785-12N2 | 3/4” | 1800 | 3785 | 680 | 102 |
Data sheet for Sampling Cylinder 5000 psi
PART No. | P NPT – F | Pressure Rating PSIG | Capacity (Internal Vol.) cm 3±5% | L mm | D mm |
FSC150-4N5 | 1/4” | 5000 | 150 | 135 | 60.3 |
FSC300-4N5 | 1/4” | 5000 | 300 | 225 | 60.3 |
FSC400-4N5 | 1/4” | 5000 | 400 | 290 | 60.3 |
FSC500-4N5 | 1/4” | 5000 | 500 | 350 | 60.3 |
FSC1000-4N5 | 1/4” | 5000 | 1000 | 275 | 88.9 |
FSC2250-4N5 | 1/4” | 5000 | 2250 | 435 | 114.3 |
FSC3785-4N5 | 1/4” | 5000 | 3785 | 680 | 114.3 |
FSC1000-8N5 | 1/2” | 5000 | 1000 | 275 | 88.9 |
FSC2250-8N5 | 1/2” | 5000 | 2250 | 435 | 102 |
FSC3785-8N5 | 1/2” | 5000 | 3785 | 680 | 102 |
FSC1000-12N5 | 3/4” | 5000 | 1000 | 275 | 88.9 |
FSC2250-12N5 | 3/4” | 5000 | 2250 | 435 | 102 |
FSC3785-12N5 | 3/4” | 5000 | 3785 | 680 | 102 |
Typical Applications
- Sampling hydrocarbons in refineries and petrochemical plants
- Sample collection in labs
- Small and short storage
- Transportation under pressure environment
- Gas sampling for chromatographic analysis
- Snubbers in reactor feed lines
- Surge accumulators in high pressure gas systems
- High vacuum systems as experimental chambers and molecular sieves
- Chemical reaction vessels
- Testing and Calibration
Industries
Most commonly used in Coal & Natural Gas Power, Sewage Treatment , Water Supply & Irrigation Systems, Oil & Gas Pipeline Construction, Industrial Building.
FAQs on Sampling Cylinder and guide for Purchasing.
What are sampling Cylinders?
Sampling Cylinders are used to facilitate storage, evaluation and movement of liquid and gas under high pressure or high temperature .
What are the accessories used with sampling Cylinders?
Since it has medium at a constant pressure , most common accessories are Needle Valve ( for control ) and Pressure Gauges( to monitor ) . Needle Valve helps the pressure intact in the cylinders , while gauges helps to check and monitor the pressure.
More complex cylinders involve hoses, quick release couplings.
Should you buy carrying handle with the cylinder?
If you anticipate any transportation at high temperature, a carrying handle is a must. Plus it’s much more convenient.
Is carrying case required for the Sample Cylinders?
Not really unless you are using exotic sample cylinders which are expensive and needs to be protected. Although basic care is required for Stainless Steel Sampling Cylinders.
Carrying Case For Sampling Cylinder
When are flat ended Cylinders preferred?
Single most important reason for self-mounting. Secondly they look more compact and neat compared to rounded cylinders. Cost of making both types of cylinder is same. Plus they keep out the medium from the exit.
When to use single ended cylinder over double ended cylinder?
There is no general rule for above, but single ended cylinder is more common when sole purpose is storage. While Double ended cylinders are used when its part of sampling system , instrumentation line or pre-installed in sampling cabinet.
Does FAV give option of installing the Sampling Cylinders in Sampling Cabinet ?

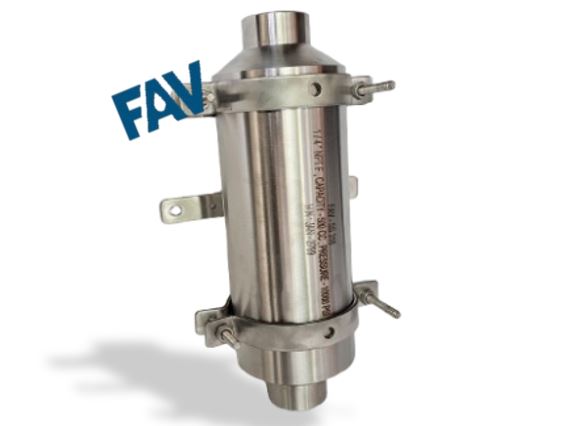

Yes we do give mounting clips or hose cir-clips for attached it on the panel .
What is the testing method for Sampling Cylinders?
We perform hydro testing with water as a medium. 100 % sample testing is undertaken.
Arrangement- 1 Sampling Cylinder with Needle Valve
Arrangement- 2 Sample Cylinder with Needle Valve and Gauges
Arrangement- 3 Sampling Cylinder with QRC and Hoses
Sampling Cylinder - Single Ended
Sampling Cylinder Exotic Material
Sampling Cylinder Flat End
PTFE Sampling Cylinders for chemicals
High Pressure Sampling Cylinder 10000 psi & 15000 psi
FAV Takes pride in being the only company that offer 10,000 psi / 15000 psi. Sampling Cylinder for continuous use. For High Pressure and High Temperature Applications we use our new and improved design. Unique manufacturing process results in no welding or machining marks .Our High Pressure Sampling Cylinders are machined from Solid Round Bars rather than Pipe resulting in more robust and efficient products .Can work under High pressure environments on continuous basis. Rated Pressure upto 10,000 psi / 15000 psi available.
