Condensate Pots

FAV range of Condensate Pots is designed to drain out foreign material from the pipeline thereby guarding critical components of instrumentation system. Generally Steam is passed through Condensation Pots. They are also known as Seal Pots or Condensing Pots.

Purpose of Condensate Pots

FAVSeal Pots  connection ensures isolation of foreign material. The condensate residue is drained from the bottom valve connection .These valve can be purchased at FAV .Installation can be either vertical or horizontal lines depending on the system requirement. Also Seal pots is used before the pressure transmitters line because temperature of steam is very high so this high temp. Steam directly may damage diaphragm of the pressure transmitter.

Material Availability

We offer FAV Seal Condensation Pot in widest range possible .It is available in Stainless Steel 316, Stainless Steel 304, Carbon Steel ASTM A106 ,Carbon Steel  ASTM A105,Alloy Steel ASTM A335 P11 ,Alloy Steel  ASTM A335 P22 , Monel 400

Condensate Pots

How are Condensation Pots made ?

Condensate seal Pots are fabricated from Seamless pipe. Standard pipe sizes are 2″ to 6″. Connection fittings are then installed on Condensate Pot be it NPT or welded socket adaptors, Butt Weld…etc

Features of Condensate Pots

  1. Customize your own Pot that fits best in your process. You can select your end connections and sizes .
  2. Variety of end connections includes Male / Female ,NPT, BSP, Butt Weld, Flanged, Socket Weld or Compression outlets.
  3. We provide Mounting stands , mounting clips or Mounting threads for easier assembly of Condensing Pots
  4. Dust Cap provided
  5. Choose between different styles.
  6. High Pressure Rating upto 10000 psi on certain configurations. For high pressure sampling cylinders click here .
  7. Choose between ultra long or high volume Condensate Pot
  8. Complete and strong focus on certification

Certifications

All come with MTC 3.1 with Hydro testing details and material chemical details. All products will come with Heat number traceability. Dye Penetration (NDE ) Testing  and Radiography testing also available on request . We are ISO and CE PED Certified company .We do hydro pressure testing for 100 % of the lot . Each Pots are individually tested making FAV the most reliable manufacturer and exporter .

Condensate Pot Types- Condensate Pots

Condensate Pot for Steam Flow Measurements
Condensate Pot Type A
Condensate Pots
Condensate Pot Type A
Condensate Pot for pressure transmitter
Condensate Pot Type B
Condensate Pot Installation
Condensate Pot Type B
Condensate Pot SS 316
Condensate Pot Type C
Condensate Seal Pot
Condensate Pot Type C
How Condensate Pot works

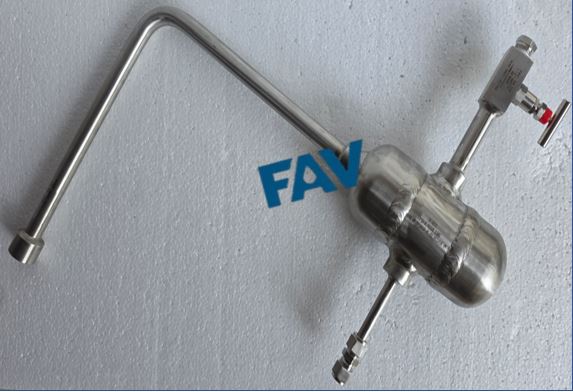

Condensate Pot Type D
Condensation Pot
Condensate Pot Type D
Condensate Pot manufacturer
Condensate Pot Type E
Condensate Seal Pot
Condensate Pot Type E
Condensate Pot Chambers
Condensate Pot Type F
Condensation Pot
Condensate Pot Type F

Custom Condensate Pot with 100 % customiztion

Beside regular Condensate and seal Pot, we also make custom made Pots. We can customize for you the length, diameter, special connection, additional accessories, mounting option. Please see below some photos.

Condensate Pots
Custom Made Condensation Pot
Condensation Pot Non Standard
Custom Made Condensation Pot 1
Custom Condensation Pot
Custom Made Condensation Pot 2
Condensation Pot Non Standard
Custom Made Condensation Pot 3
Condensation Pot
Custom Made Condensation Pot 4
Custom Made Condensation
Custom Made Condensation Pot 5
