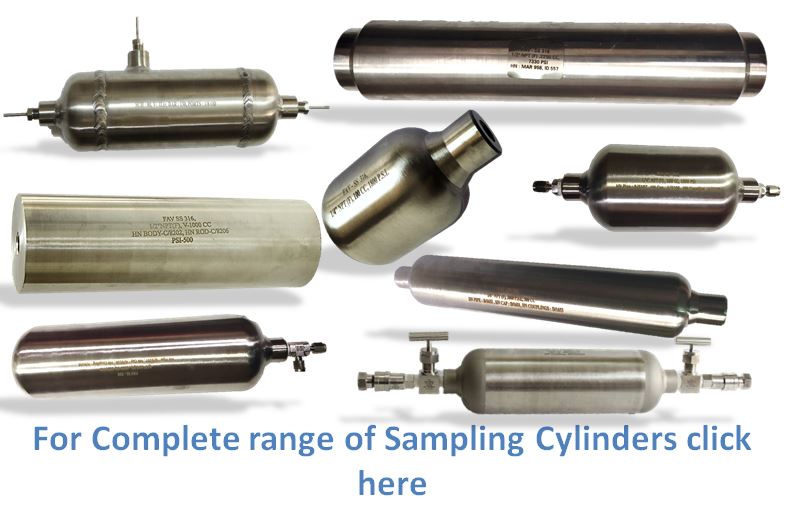

High Pressure Sampling Cylinder
High Pressure Sampling Cylinder- Drawing
Some of the features of FAV High Pressure Sampling Cylinder are
1. 316 stainless steel to resist corrosion
2. Other grades like Monel 400/500, Titanium Gr2 , Inconel 625 , Duplex and Super Duplex available on request
3. Range of cylinder volumes: 50 cc – 4000 cc.
4. All cylinders have 1/4″ NPT F or ½” NPT F threads on both ends. Other sizes on request .
5. High Pressure upto 15000 psi available
6. Solid Bar Construction for continuous high pressure usage
7. Available in Single ended and Double ended
8. 100 % individual testing
9. MTC 3.1 to be issued
10. For standard range click here
Datasheet of Sampling Cylinder 10000 psi
Datasheet of Sampling Cylinder 15000 psi
| PART No. | P NPT – F | Pressure Rating PSIG | Capacity (Internal Vol.)cm 3±5% | L mm | D mm |
| FSC150-4N15 | 1/4” | 15000 | 150 | 135 | 50.8 |
| FSC300-4N15 | 1/4” | 15000 | 300 | 225 | 50.8 |
| FSC400-4N15 | 1/4” | 15000 | 400 | 290 | 50.8 |
| FSC500-4N15 | 1/4” | 15000 | 500 | 350 | 50.8 |
| FSC1000-4N15 | 1/4” | 15000 | 1000 | 275 | 88.9 |
| FSC2250-4N15 | 1/4” | 15000 | 2250 | 435 | 120 |
| FSC3785-4N15 | 1/4” | 15000 | 3785 | 680 | 120 |
| FSC1000-8N15 | 1/2” | 15000 | 1000 | 275 | 88.9 |
| FSC2250-8N15 | 1/2” | 15000 | 2250 | 435 | 102 |
| FSC3785-8N15 | 1/2” | 15000 | 3785 | 680 | 102 |
| FSC1000-12N15 | 3/4” | 15000 | 1000 | 275 | 88.9 |
| FSC2250-12N15 | 3/4” | 15000 | 2250 | 435 | 102 |
| FSC3785-12N15 | 3/4” | 15000 | 3785 | 680 | 102 |
