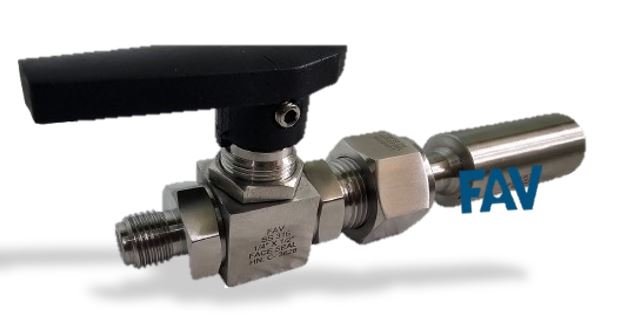

Sample Cylinders and Natural Gas Sample Cylinder  with Needle Valve

Sampling Cylinders for natural gas sample and pressure liquid collection, storage and transportation.

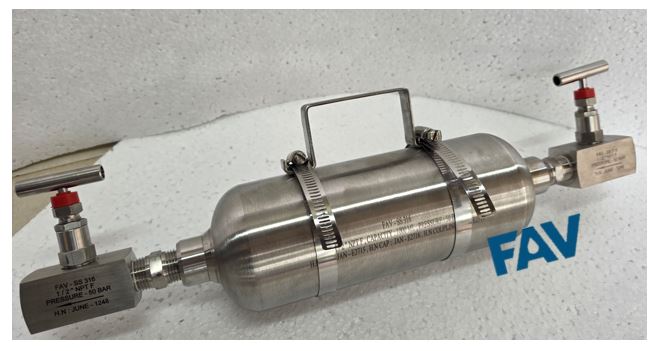

Consists of Sampling Cylinders with two Needle Valves .One at Inlet and One at Outlet . Supporting Pipe Nipple is added. We can give final connection Male by using Male X Female  Needle Valve  . Angle Needle Valve also available on request ,instead of straight Needle Valves . This configuration is used are used for Natural Gas and high pressure water collection

Sampling Cylinders

Natural gas sample cylinders

Datasheet for Sampling Cylinder with Needle Valve , 1800 psi

PART No.P NPT – FNeedle Valve sizePressure Rating PSIGCapacity (Internal Vol.)cm 3±5%Total Length with Needle Valve, Approx mmD mm
FSCS150-4N2-NV1/4”1/4” NPT F180015025560.3
FSCS300-4N2-NV1/4”1/4” NPT F180030034560.3
FSCS400-4N2-NV1/4”1/4” NPT F180040041060.3
FSCS500-4N2-NV1/4”1/4” NPT F180050047060.3
FSCS1000-4N2-NV1/4”1/4” NPT F1800100039588.9
FSCS2250-4N2-NV1/4”1/4” NPT F18002250555114.3
FSCS3785-4N2-NV1/4”1/2” NPT F18003785800114.3
FSCS1000-8N2-NV1/2”1/2” NPT F1800100047588.9
FSCS2250-8N2-NV1/2”1/2” NPT F18002250635102
FSCS3785-8N2-NV1/2”1/2” NPT F18003785880102
FSCS1000-12N2-NV3/4”¾” NPT F1800100052588.9
FSCS2250-12N2-NV3/4”¾” NPT F18002250685102
FSCS3785-12N2-NV3/4”¾” NPT F18003785930102

Datasheet for Sample Cylinders with Needle Valve , 5000 psi

PART No.P NPT – FNeedle Valve sizePressure Rating PSIGCapacity (Internal Vol.)cm 3±5%Total Length with Needle Valve, Approx mmD mm
FSC150-4N5-NV1/4”1/4” NPT F500015025560.3
FSC300-4N5-NV1/4”1/4” NPT F500030034560.3
FSC400-4N5-NV1/4”1/4” NPT F500040041060.3
FSC500-4N5-NV1/4”1/4” NPT F500050047060.3
FSC1000-4N5-NV1/4”1/4” NPT F5000100039588.9
FSC2250-4N5-NV1/4”1/4” NPT F50002250555114.3
FSC3785-4N5-NV1/4”1/2” NPT F50003785800114.3
FSC1000-8N5-NV1/2”1/2” NPT F5000100047588.9
FSC2250-8N5-NV1/2”1/2” NPT F50002250635102
FSC3785-8N5-NV1/2”1/2” NPT F50003785880102
FSC1000-12N5-NV3/4”¾” NPT F5000100052588.9
FSC2250-12N5-NV3/4”¾” NPT F50002250685102
FSC3785-12N5-NV3/4”¾” NPT F50003785930102

Function of the above arrangement of Sample Cylinders

FAV range of Cylinder Sample with Needle Valves on both sides are majorly used  for evaluation, storage and movement of both liquids and gases. Available in Single ended cylinder with single Needle Valve, double ended  cylinder  with duel Needle Valve and flat ended with Dual Male Needle Valves. Double ended Sampling cylinders are most commonly used. 100 % customization is possible for these cylinders. The major medium for them are Natural Gas but they are also used for water.

Material availability

FAV Cylinder Sample with Needle Valves are available in Stainless Steel 304 ( SS 304 ), Titanium Grade 2 Fittings ( Ti Gr 2), Monel 400, Stainless Steel 316 Cylinder ( SS316), Monel 500 sample cylinder, Incoloy 800 (Alloy 800), Inconel 600, Inconel 625, Hastelloy C 276, Inconel 825, Duplex 2205 and Super Duplex 32750. Most common are Stainless Steel natural gas sample cylinders with Stainless Steel Needle Valve.

For Dedicated page on Titanium Sample Cylinders click here.

For Dedicated page on Duplex 2205 sample Cylinders and Super Duplex 32750 Sampling click here .

Features- Sample Cylinders

1) Customize your own Sampling Cylinder that fits best in your process. No two sample cylinders are same. We offer 100 % customization.

2) Entire System available which include, Needle Valves and Pipe Fittings

3) Sampling cylinders in different capacity of 150 cc , 300 cc , 500cc ,1000cc, 1500cc, 2250cc, 4000 cc , 5000 cc , 10000 cc . In some cases even 15000 cc

4) Variety of end connections includes Male / Female NPT, BSPT, BSPP

5) Dust Cap provided

6) Standard Pressure Rating of 500 psi ,1000 psi ,2000 psi ,3000 psi and 6000 psi. High Pressure Sample Cylinder with Rating upto 10000 psi and 15000 psi .

Typical Applications

  1. Sampling hydrocarbons in refineries and petrochemical plants
  2. Testing Labs
  3. Research & Development Use
  4. Underwater storage tanks
  5. Sample collection in labs
  6. Small and short storage under pressure
  7. Transportation under pressure environment
  8. Gas sampling for chromatographic analysis
  9. Snubbers in reactor feed lines
  10. Surge accumulators in high pressure gas systems
  11. High vacuum systems
  12. Chemical reaction vessels
  13. Calibration and Testing


Most commonly used in Coal & Natural Gas Power,Sewage Treatment ,Water Supply & Irrigation Systems,Oil & Gas Pipeline Construction,Industrial Building

FAQs on Sampling Cylinder and guide for Purchasing Sample Cylinders with Needle Valve.

What are sampling Cylinders with Needle Valves used for?

They are used to facilitate storage, evaluation and movement of liquid and gas under high pressure or high temperature.

Can FAV Sampling Cylinders be used with Natural Gas?

Yes they are safe and tested to be used with Natural gas or any other gaseous medium at high pressure and high temperature

Are FAV Sampling Cylinders tested?

We perform hydro pressure proof testing with water as a medium. 100 % sample testing is undertaken.

What is the use for Needle Valves in this type of Sample Cylinders?

Since it has medium at a constant pressure, most common accessories are Needle Valve (for control). Needle Valve helps the pressure intact in the cylinders.

When are Flat end Cylinders preferred in this configuration?

Very rarely

When to use single ended cylinder over double ended cylinder?

There is no general rule for above, but single end cylinder is more common when sole purpose is storage. While Double ended cylinders are used when it’s part of sampling system, instrumentation line or pre-installed in sampling cabinet. Basically it acts as pre-instrument device.

Does FAV give option of installing the Cylinders in Sampling Cabinet?

Yes we do give mounting clips or hose cir-clips for attached it on the panel .This configuration is very popular in the sampling system. One of the most common Valves used with Sampling cylinder is Needle Valves
