Needle Valve & Gauge Valve

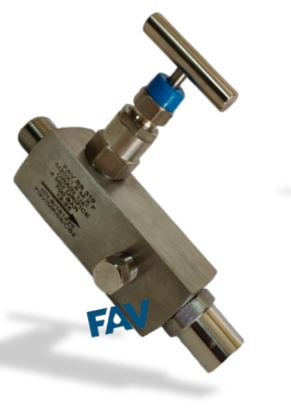

Multiport Gauge valve is essentials Single Isolation Needle Valve with more than 1 one port on the outlet side. So generally 1 port is used for Pressure Gauges and the other one is used for Process Line. This is widely used method of installing gauge in a line. There are occasionally used with Solid Plugs or Bleeder Plugs as shown in the below photos. They are basically Single Isolation Needle Valve with more than 1 one port on the outlet side. So generally 1 port is used for Pressure Gauges and the other one is used for Process Line. This is widely used method of installing gauge in a line. There are occasionally used with Solid Plugs or Bleeder Plugs.
| PART No. | END CONNECTIONS | DIMENSION | ||||
| P | P1 | A | ± C | D | E | |
| FGV/MP/05 | 1/4″ FEMALE | 1/4″ FEMALE | 90 | 6 2 | 2 2 | 40 |
| FGV/MP/06 | 1/2″FEMALE | 1/2″ FEMALE | 1 1 5 | 8 4 | 3 0 | 55 |
| FGV/MP/07 | 1/2″ FEMALE | 1/2″ EXTEND ED | 2 1 5 | 8 4 | 3 0 | 55 |
| FGV/MP/08 | 3/4″ FEMALE | 3/4″ EXTEND ED | 2 1 5 | 8 4 | 3 8 | 55 |
| FGV/MP/01 | 1/2″ MALE | 1/2″ FEMALE | 1 1 5 | 8 4 | 3 0 | 55 |
| FGV/MP/02 | 1/2″ MALE | 3/4″ FEMALE | 1 1 5 | 8 4 | 3 0 | 55 |
| FGV/MP/03 | 3/4″ MALE | 3/4″ FEMALE | 1 1 5 | 8 4 | 3 8 | 55 |
| FGV/MP/04 | 3/4″MALE | 1/2″ FEMALE | 1 1 5 | 8 4 | 3 0 | 55 |
