| Component | Material |
|---|---|
| Body | Stainless Steel (SS 316) / Alloy Steel (4140) |
| Ball | K-Monel |
| Spring | Inconel X-750 |
| Part No. | Thread Size |
| FAV/WH/GF/1 | 1/4” NPT |
| FAV/WH/GF/2 | 3/8” NPT |
| FAV/WH/GF/3 | 1/2“ NPT |
| FAV/WH/GF/4 | 3/4” NPT |
| FAV/WH/GF/5 | 1” NPT |

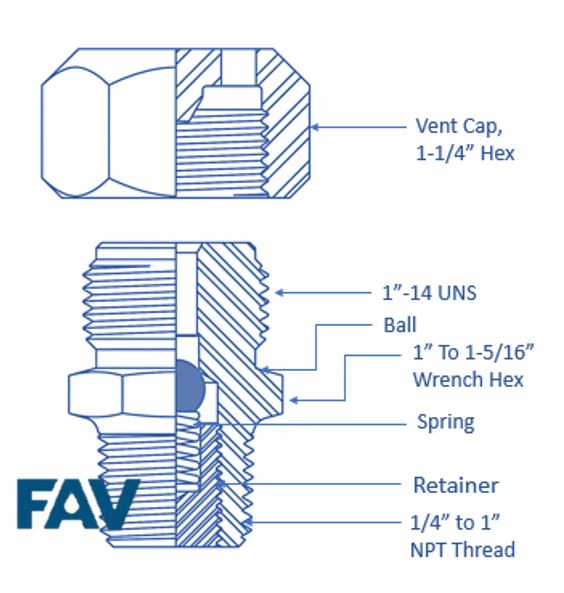

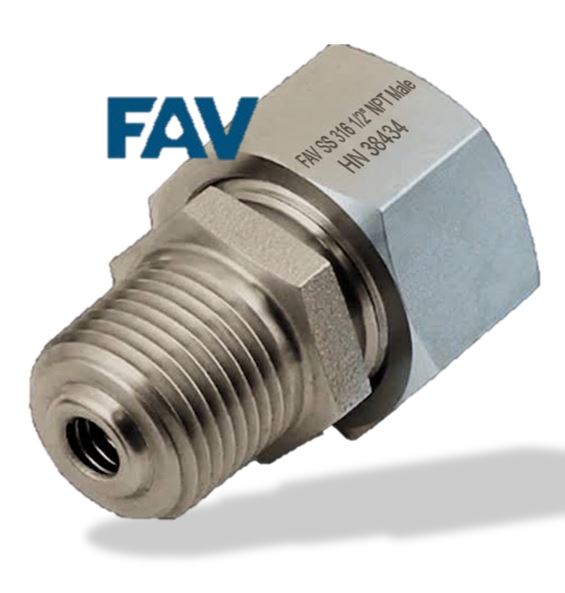

Our Vented Cap Body Grease Fittings, Positive Flow, 10,000 PSI are high-pressure lubrication fittings designed to provide reliable and controlled grease injection in demanding industrial applications. The positive-flow design enables efficient grease delivery while the vented cap body helps support dependable operation during lubrication and pressure management.
Manufactured for high-pressure service, these grease fittings are rated up to 10,000 PSI and are suitable for applications requiring consistent lubrication performance, secure sealing, and durability under demanding operating conditions. They are designed for use with high-pressure lubrication systems, valves, manifolds, and industrial equipment.
