What are Tapered Thermowell?

FAV range of Tapered Thermowell are available at best price. Installed directly into the piping systems, Tapered Thermowell, SS Thermowell facilitate sensor replacement in high pressure pipelines and eliminate the need to interrupt the process flow or drain the process system for sensor maintenance function. Tapered Thermowell are utilized when pressure, high velocity and corrosive process media exist. This serves to isolate and protect the sensing instrument, and permits removal of a sensing instrument without shutting down the process. A perfect solution for protecting the process and extending product service life.

Material Availability for Tapered Thermowell

FAV Thermowells are available in Stainless Steel 304 (SS 304), Stainless Steel 316 (SS 316) , Brass (Grade IS 319), Incoloy 800 (Alloy 800), Inconel 600, Inconel 625 , Inconel 825, Carbon Steel, Titanium Grade 2 Fittings (Ti Gr 2), Monel 400 , Monel 500 , Hastelloy C 276, Duplex 2205 and Super Duplex .Stainless Steel 316 Thermowell are most common.

For standard Compression tube fittings click here

For standard Precision Pipe Fittings click here

Common types of Thermowell

1. Bar Stock Threaded (Process threads NPT, BSP or Metric)
2. Thermowell with special grades
3. Bar Stock Flanged (Flanges as per ANSI, BS or DIN )
4. Fabricated Threaded
5. Fabricated Flanged
6. Fabricated Weld In
7. Bar Stock Weld In
8. Extra Long Thermowells

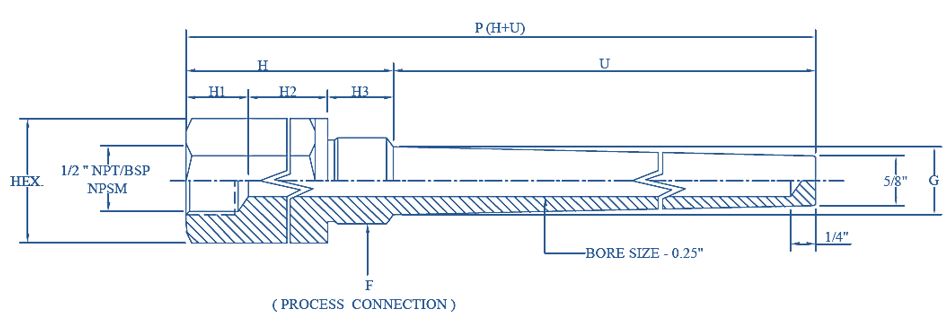

Thermowell Tappered with Legging Length

Some Common Sizes for Thermowell Tapered are

FAV SS 316 Tapered Thermowells, bar stock
Instrument Connection 1/2″ NPT Female
Process Connection 1/2″ NPT Male
Insertion Length = 6″
Bore =6 mm

FAV SS 316 Tapered Thermowells, bar stock
Instrument Connection 3/4″ NPT Female
Process Connection 1/2″ NPT Male
Insertion Length = 8″
Bore =7 mm

FAV SS 316 Tapered Thermowells, bar stock
Instrument Connection 1/2″ NPT Female
Process Connection 1/2″ NPT Male
Insertion Length = 10″
Bore =8 mm
