Reducer Flareless Tube Fittings as per DIN 2353

Reducers

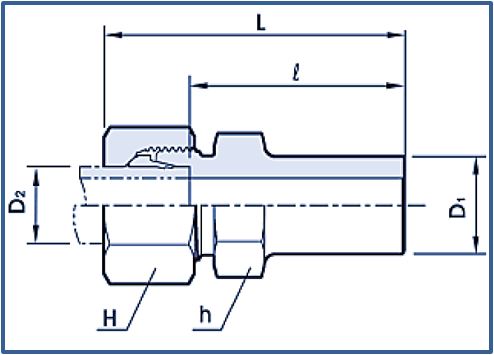

Reducer Flareless Tube Fittings as per DIN 2353

Series	Part No	Tube OD D1	Tube OD D2	H	h	L	l
L Series PN 315	FHR08L-06L	8	6	14	12	40	25.5
	FHR10L-06L	10	6	14	12	42	27.5
	FHR10L 08L	10	8	17	14	43	27.5
	FHR12L-06L	12	6	14	14	42	27.5
	FHR12L-08L		8	17	14	43	27.5
	FHR12L-10L		10	19	17	44	28.5
	FHR15L-06L	15	6	14	19	44	29
	FHR15L-08L		8	17	19	44	29
	FHR15L-10L		10	19	19	45	30
	FHR15L-12L		12	22	19	45	30
	FHR18L-06L	18	6	14	19	46	31
	FHR18L-08L		8	17	19	46	31
	FHR18L-10L		10	19	19	47	32
	FHR18L-12L		12	22	19	47	32
	FHR18L-15L		15	27	22	49	32
PN 160	FHR22L-06L	22	6	14	24	48	33
	FHR22L-08L		8	17	24	48	33
	FHR22L-10L		10	19	24	49	34
	FHR22L-12L		12	22	24	49	34
	FHR22L-15L		15	27	24	50	35
	FHR22L 18L		18	32	27	51	34.5
	FHR28L-06L	28	6	14	30	48	33
	FHR28L-08L		8	17	30	48	33
	FHR28L-10L		10	19	30	49	34
	FHR28L-12L		12	22	30	49	34
	FHR28L-15L		15	27	30	50	35
	FHR28L-18L		18	32	30	51	36
	FHR28L-22L		22	36	32	53	36.5
	FHR35L-06L	35	6	14	36	53	38.5
	FHR35L-08L		8	17	36	53	38.5
	FHR35L-10L		10	19	36	55	39.5
	FHR35L-12L		12	22	36	55	39.5
	FHR35L-15L		15	27	36	56	40.5
	FHR35L-18L		18	32	36	56	40
	FHR35L-22L		22	36	36	58	42
	FHR35L-28L			41	36	59	42
	FHR42L-06L	42	6	14	46	56	41
	FHR42L-08L		8	17	46	56	41
	FHR42L-10L		10	19	46	58	42
	FHR42L-12L		12	22	46	58	42
	FHR42L-15L		15	27	46	60	43
	FHR42L-18L		18	32	46	60	42.5
	FHR42L-22L		22	36	46	62	44.5
	FHR42L-28L			41	46	64	44.5
	FHR42L-35L		35	50	46	67	43.5

Series	Part. No.	Tube O.D. D1	Tube O.D. D2	H	h	L	l
S Series PN630	FHR08S-06S	8	6	17	14	43	28
	FHR10S-06S	10	6	17	14	45	30.5
	FHR10S08S	10	8	19	17	45	30.5
	FHR12S-06S	12	6	17	14	47	32.5
	FHR12S-08S		8	19	17	47	32.5
	FHR12S-10S		10	22	19	48	32
	FHR14S-06S	14	6	17	17	51	36.5
	FHR14S-08S		8	19	17	51	36.5
	FHR14S-10S		10	22	19	52	36
	FHR14S12S		12	24	22	52	36
	FHR16S-06S	16	6	17	17	53	38.5
	FHR16S08S		8	19	17	53	38.5
	FHR16S-10S		10	22	19	54	38
	FHR16S-12S		12	24	22	55	38.5
	FHR16S-14S		14	27	22	57	39.5
PN400	FHR20S-06S	70	6	17	22	58	43
	FHR20S-08S		8	19	22	58	43
	FHR20S-10S		10	22	22	59	42.5
	FHR20S-12S		12	24	22	59	42.5
	FHR20S-14S		14	27	22	62	44
	FHR20S-16S		16	30	24	62	43.5
	FHR25S-06S	25	6	17	27	62	47.5
	FHR25S-08S		8	19	27	62	47.5
	FHR25S-10S		10	22	27	63	47
	FHR25S-12S		12	24	27	63	47
	FHR25S-14S		14	27	27	66	48.5
	FHR25S-16S		16	30	27	66	48
	FHR25S-20S		20	36	30	70	48
	FHR30S-06S	30	6	17	32	67	52
	FHR30S-08S		8	19	32	67	52
	FHR30S-10S		10	22	32	68	51.5
	FHR30S-12S		12	24	32	68	51.5
	FHR30S-14S		14	27	32	71	53
	FHR30S-16S		16	30	32	71	52.5
	FHR30S-20S		20	36	32	74	52.5
	FHR30S-25S		25	46	36	11	53
PN 315	FHR38S-06S	38	6	17	41	72	57
	FHR38S-08S		8	19	41	72	57
	FHR38S-10S		10	22	41	73	56.5
	FHR38S-12S		12	24	41	73	56.5
	FHR38S-14S		14	27	41	76	58
	FHR38S16S		16	30	41	76	57.5
	FHR38S20S		20	36	41	79	57.5
	FHR38S-25S		25	46	41	82	58
	FHR38S-30S		30	50	46	89	58.5
