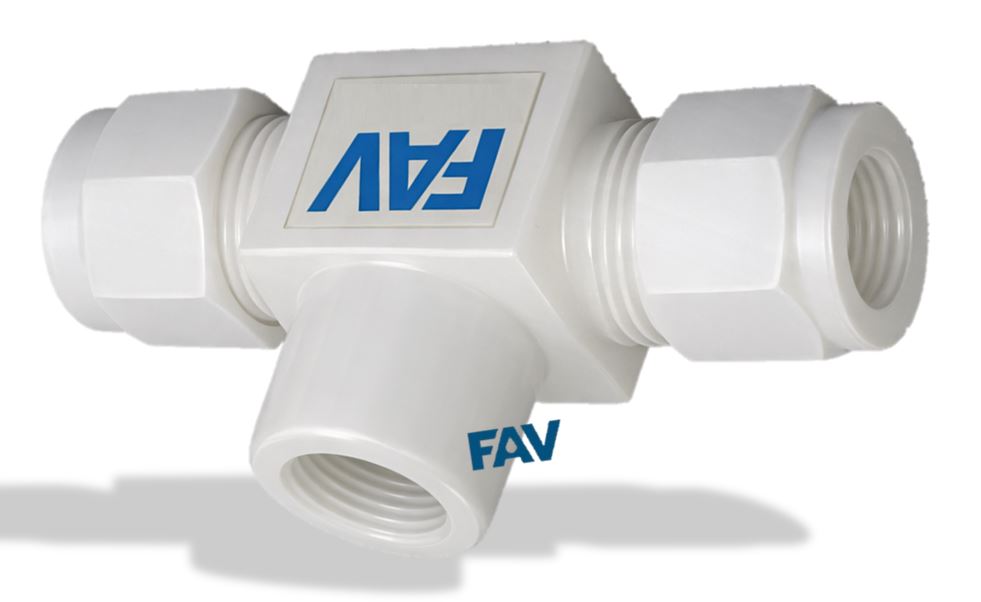

We are manufacturer of PVDF Female Branch Tee which is a part of PVDF Compression ferrule tube fitting. PVDF (Polyvinylidene Fluoride) fittings are high-performance piping components used to connect, control, and direct fluid flow in demanding industrial systems. They are made from PVDF, a strong, chemically resistant thermoplastic known for its durability and purity. PVDF fittings are a premium choice when chemical resistance, purity, and durability are critical.
| IMPERIAL | ||||||||
| PART No. | 0D Imperial | P NPTF | ||||||
| PVDF/FBT/2I-2T | 1/8 | 1/8 | ||||||
| PVDF/FBT/2I-4T | 1/8 | 1/4 | ||||||
| PVDF/FBT/3I-2T | 3/16 | 1/8 | ||||||
| PVDF/FBT/4I-2T | 1/4 | 1/8 | ||||||
| PVDF/FBT/4I-4T | 1/4 | 1/4 | ||||||
| PVDF/FBT/5I-2T | 5/16 | 1/8 | ||||||
| PVDF/FBT/6I-4T | 3/8 | 1/4 | ||||||
| PVDF/FBT/6I-6T | 3/8 | 3/8 | ||||||
| PVDF/FBT/8I-6T | 1/2 | 3/8 | ||||||
| PVDF/FBT/8I-8T | 1/2 | 1/2 | ||||||
| PVDF/FBT/10I-8T | 5/8 | 1/2 | ||||||
| PVDF/FBT/12I-12T | 3/4 | 3/4 | ||||||
Some Common Sizes for PVDF Female Branch Tee are
- FAV PVDF Branch Tee 1/8″ OD x 1/8″ NPTF(centre) x 1/8″ OD
- FAV PVDF Branch Tee 1/4″ OD x 1/4″ NPTF(centre) x 1/4″ OD
- FAV PVDF Branch Tee 3/8″ OD x 3/8″ NPTF(centre) x 3/8″ OD
- FAV PVDF Branch Tee 1/2″ OD x 3/8″ NPTF(centre) x 1/2″ OD
- FAV PVDF Branch Tee 3/4″ OD x 3/4″ NPTF(centre) x 3/4″ OD
