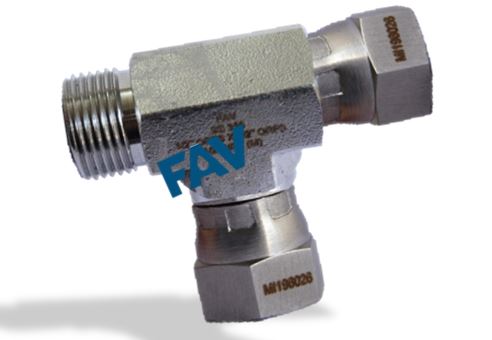

FAV is manufacturer and Exporter of O-ring face seal (ORFS Tube fittings) ORFS Fittings – JIC FEMALE/JIC FEMALE/JIC MALE. We have all types of ORFS Fittings like Adaptors,Elbow,Swivel Fittings,Tee & Cross
| PART NO. | THREAD | DIMENSIONS | ||||||
| E | F | G | A,B | C | S1 | S2 | S3 | |
| FAV/FJ-04 | 7/16″X20 | 7/16″X20 | 7/16″X20 | 9 | 24.5 | 11 | 15 | 15 |
| FAV/FJ-05 | 1/2″X20 | 1/2″X20 | 1/2″X20 | 9.5 | 26.5 | 14 | 17 | 17 |
| FAV/FJ-06 | 9/16″X18 | 9/16″X18 | 9/16″X18 | 10.5 | 26.9 | 14 | 19 | 19 |
| FAV/FJ-08 | 3/4″X16 | 3/4″X16 | 3/4″X16 | 11 | 32 | 19 | 24 | 24 |
| FAV/FJ-10 | 7/8″X14 | 7/8″X14 | 7/8″X14 | 13 | 37.8 | 22 | 27 | 27 |
| FAV/FJ-12 | 1.1/16″X12 | 1.1/16″X12 | 1.1/16″X12 | 15 | 44.2 | 30 | 32 | 32 |
