For emergency leak containment, Threaded Tapered Tube Plugs offer an immediate solution. Drill a precise hole at the leak location and install the self-tapping plug using a hex or socket wrench. Provides a secure temporary repair for tanks and piping systems until permanent repairs can be made during the next turnaround.
Where to Use :-
Perfect for temporary leak fixes on boilers, storage tanks, and process pipelines. Keep your equipment running — no shutdowns, no patching, no welding needed to stop the leak.Easy Installation
Just drill and drive. The self-tapping design installs with any standard hex or socket wrench. For longer-term use, the plug can also be welded in place.Built Tough
Made from heat-treated alloy steel or corrosion-resistant stainless steel for reliable performance in harsh industrial environments.

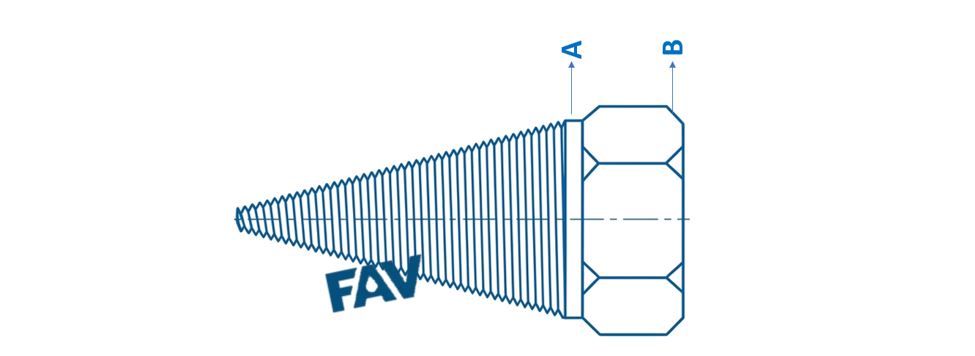

| Part Number | “B” Hex Size | “A” Large End | For Hole Size upto |
| FAVHETP-1 | 3/8″ | 0.365 | 0.350 |
| FAVHETP-2 | 1/2″ | 0.480 | 0.450 |
| FAVHETP-3 | 5/8″ | 0.615 | 0.580 |
| FAVHETP-4 | 3/4″ | 0.730 | 0.710 |
| FAVHETP-5 | 7/8″ | 0.855 | 0.835 |
| FAVHETP-6 | 1″ | 0.975 | 0.950 |
| FAVHETP-7 | 1-1/8″ | 1.100 | 1.150 |
| FAVHETP-8 | 1-1/4″ | 1.220 | 1.200 |
| FAVHETP-9 | 1-3/8″ | 1.345 | 1.320 |
| FAVHETP-10 | 1-1/2″ | 1.470 | 1.450 |
Material available:-
Material Options for Threaded Metal Tapered Tube PlugsWe manufacture plugs in a wide range of corrosion-resistant alloys to suit boilers, heat exchangers, condensers, and process equipment:(S) Stainless Steel – General purpose, food & pharma grade(C) Carbon Steel – Economical for non-corrosive service(B) Brass – Good for water and low-pressure applications(J) 70/30 CuNi & (K) 90/10 CuNi – Seawater, marine, and condenser service(H) Hastelloy C-276 – Extreme chemical and acidic environments(I) Inconel & (N) Incoloy – High-temperature, sour gas service(M) Monel 400 & (O) Monel 500 – Seawater, HF acid, and caustic service(T) Titanium – Chlorides, brine, and aggressive media(D) Duplex & (E) Super Duplex – Offshore, oil & gas, high chloride resistance
