| 60 Series Female | FemaleNPT Thread | |||||

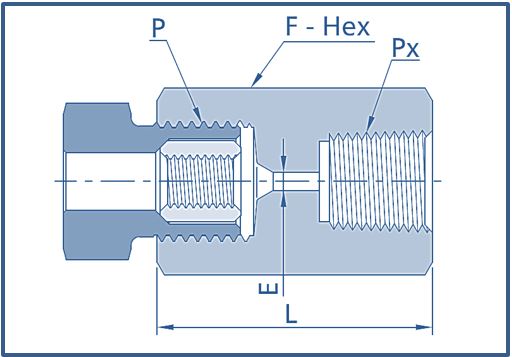

| Ordering Number | P- Connection Type | Px- Connection Type | Dimension, in. (mm) | Working Pressure psig (bar) | ||
| L | F | E | ||||
| 55-FFC-6FH4-NS4 | 1/4″ HP | 1/4 NPT | 1.63(41.3) | 0.94 (23.8) | 0.09 (2.4) | 15000(1034) |
| 55-FFC-6FH4-NS6 | 1/4″ HP | 3/8 NPT | 1.63(41.3) | 1.13(28.6) | 0.09 (2.4) | 15000(1034) |
| 55-FFC-6FH4-NS8 | 1/4″ HP | 1/2 NPT | 2.00 (50.8) | 1.37(34.9) | 0.09 (2.4) | 15000(1034) |
| FAV/FFC/6FH4-NS12 | 1/4″ HP | 3/4 NPT | 2.00 (50.8) | 1.50(38.1) | 0.09 (2.4) | 10000(690) |
| FAV/FFC/6FH4-NS16 | 1/4″ HP | 1 NPT | 2.37 (60.3) | 1.75(44.5) | 0.09 (2.4) | 10000(690) |
| FAV/FFC/6FH6-NS2 | 3/8″ HP | 1/8 NPT | 1.63(41.3) | 1.00(25.4) | 0.13(3.2) | 15000(1034) |
| FAV/FFC/6FH6-NS4 | 3/8″ HP | 1/4 NPT | 1.87 (47.6) | 1.00(25.4) | 0.13(3.2) | 15000(1034) |
| FAV/FFC/6FH6-NS6 | 3/8″ HP | 3/8 NPT | 1.87 (47.6) | 1.13(28.6) | 0.13(3.2) | 15000(1034) |
| FAV/FFC/6FH6-N58 | 3/8″ HP | 1/2 NPT | 2.13 (54.0) | 1.37(34.9) | 0.13(3.2) | 15000(1034) |
| FAV/FFC/6FH6-NS12 | 3/8″ HP | 3/4 NPT | 2.00 (50.8) | 1.50(38.1) | 0.13(3.2) | 10000(690) |
| FAV/FFC/6FH6-NS16 | 3/8″ HP | 1 NPT | 2.25 (57.2) | 1.75(44.5) | 0.13(3.2) | 10000(690) |
| FAV/FFC/6FH9-NS2 | 9/16″ HP | 1/8 NPT | 1.81 (46.0) | 1.37(34.9) | 0.19(4.8) | 15000(1034) |
| 55-FFC-6FH9-NS4 | 9/16″ HP | 1/4 NPT | 2.00 (50.8) | 1.37(34.9) | 0.19(4.8) | 15000(1034) |
| 55-FFC-6FH9-NS6 | 9/16″ HP | 3/8 NPT | 2.00 (50.8) | 1.37(34.9) | 0.19(4.8) | 15000(1034) |
| 55-FFC-6FH9-NS8 | 9/16″ HP | 1/2 NPT | 2.37 (60.3) | 1.37(34.9) | 0.19(4.8) | 15000(1034) |
| FAV/FFC/6FH9-NS12 | 9/16″ HP | 3/4 NPT | 2.37 (60.3) | 1.50(38.1) | 0.19(4.8) | 10000(690) |
| FAV/FFC/6FH9-N516 | 9/16″ HP | 1 NPT | 2.50 (63.5) | 1.75(44.5) | 0.19(4.8) | 10000(690) |
Some Common Sizes for SS 316 Adapter High Pressure Female X NPT Female are
- FAV SS 316 Adapter 3/8” HP Female x 1/4” NPT Female 15000 psi
- FAV SS 316 Adapter 9/16” HP Female x 3/8” NPT Female 15000 psi
- FAV SS 316 Adapter 9/16” HP Female x 1/2” NPT Female 15000 psi
- FAV SS 316 Adapter 1/4” HP Female x 3/4” NPT Female 10000 psi
- FAV SS 316 Adapter 9/16” HP Female x 1” NPT Female 10000 psi
