2 Way Manifold Valves Block and Bleed Type

FAV is one of the believed Manifold Valve manufacturer. We make a wide array of configurations which are available such as 2 Way Manifold Valves, 3 Way Manifold Valves and 5 Way Manifold Valves. These Manifold Valves are castoff in pressure gauges, system impulse lines, differential pressure, Flow Plotter and switches.

For more details on Manifold Valves click here

2 Way Manifold Valve Block and Bleed Type , MXF , Male Inlet and Female Outlet

Block & Bleed Manifold Valve

2 Way Manifold Valve Block and Bleed Type , MXM , Male Inlet and Male Outlet

Instrument Block & Bleed Valve

2 Way Manifold Valve Block and Bleed Type , FXF , Female Inlet and Female Outlet

Block and Bleed Valve
Instrumentation Valves

2 Way Manifold Valves Block and Bleed Type

Orifice : 4 mm
Approximate Weight : 1.0 kg.
Pressure : up to 6000 psi.
Temperature: up to 400 c
All dimension in Millimeter

PART No.END CONNECTIONSDIMENSION
 Instrument ConnectionProcess ConnectionBA
FGV/BBM/011/4″ MALE1/4″ FEMALE8024
FGV/BBM/021/4″ FEMALE1/4″ FEMALE8024
FGV/BBM/031/4″ MALE1/4″ MALE8024
FGV/BBM/041/2″ MALE1/2″FEMALE11530
FGV/BBM/051/2″FEMALE1/2″ MALE11530
FGV/BBM/061/2″ MALE1/2″ MALE11530
FGV/BBM/071/2″ MALE3/4″ FEMALE11530
FGV/BBM/083/4″ FEMALE1/2″ MALE11538
FGV/BBM/093/4″ MALE3/4″ FEMALE11538
FGV/BBM/103/4″ FEMALE3/4″ FEMALE11538
FGV/BBM/113/4″ MALE3/4″ MALE11538

Some Common Sizes for SS 316, Block and Bleed Valve, Female x Female are

  1. FAV SS 316, Block And Bleed Valve, 1/4″ NPTF x 1/4″ NPTF, 6000 Psi, With Drain Plug of 1/4” NPTM
  2. FAV SS 316, Block And Bleed Valve, 3/8″ NPTF x 3/8″ NPTF, 10000 Psi, With Drain Plug of 1/4” NPTM
  3. FAV SS 316, Block And Bleed Valve, 1/2″ NPTF x 1/2″ NPTF, 6000 Psi, With Drain Plug of 1/4” NPTM

Some Common Sizes for SS 316, Block and Bleed Valve, Male x Male are

  1. FAV SS 316, Block And Bleed Valve, 1/4″ NPTM x 1/4″ NPTM, 10000 Psi, With Drain Plug of 1/4” NPTM
  2. FAV SS 316, Block And Bleed Valve, 3/8″ NPTM x 3/8″ NPTM, 6000 Psi, With Drain Plug of 1/4” NPTM
  3. FAV SS 316, Block And Bleed Valve, 1/2″ NPTM x 1/2″ NPTM, 10000 Psi, With Drain Plug of 1/4” NPTM

Some Common Sizes for SS 316, Block and Bleed Valve, Male x Female are

  1. FAV SS 316, Block And Bleed Valve, 1/4″ NPTM x 1/4″ NPTF, 6000 Psi, With Drain Plug of 1/4” NPTM
  2. FAV SS 316, Block And Bleed Valve, 3/8″ NPTM x 3/8″ NPTF, 10000 Psi, With Drain Plug of 1/4” NPTM
  3. FAV SS 316, Block And Bleed Valve, 1/2″ NPTM x 1/2″ NPTF, 6000 Psi, With Drain Plug of 1/4” NPTM

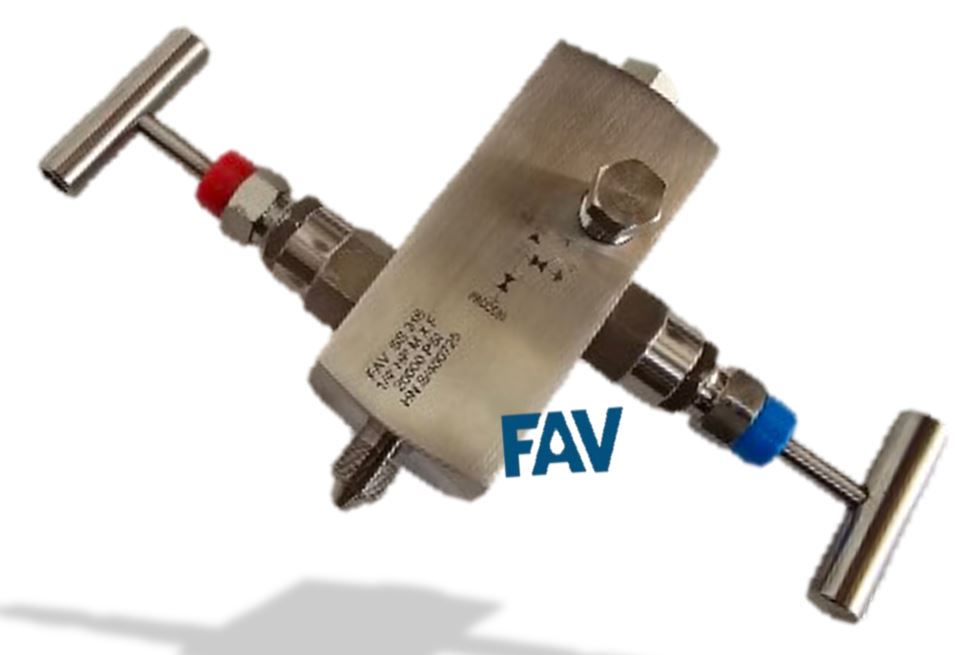

2 Way Manifold Valve, Block and Bleed Type, 10000 psi

2 Way Manifold Valves

2 Way Manifold Valve, Block and Bleed Type, Socket Weld

Manifold Valve, Block and Bleed
