FAV is manufacturer and exporter of Compression 45 degree Elbow Union.  Our tubing unions are part of double ferrule fittings range. FAV Tube fittings range are most complete with availability of 45 deg Elbow Connector OD x Male, Elbow, Female Elbow, Elbow Male, Male Elbow, Male Branch Tee, Male Run Tee Twin ferrules, Male Run Tee, Female Branch Tee in Tube OD and Pipe Connections. With widest possible sizes, material and threading coverage you can get any type of tube fittings at FAV. Stainless steel ferrule fittings Ferrule is one of the best way to connect tubes.

Material Availability

45 deg Elbow Union are available in Stainless Steel 304 (SS 304), Stainless Steel 316 (SS 316), Brass (Grade IS 319), Carbon Steel, Titanium Grade 2 Fittings (Ti Gr 2), Incoloy 800 (Alloy 800), Inconel 600, Inconel 625, Inconel 825, Duplex 2205 and Super Duplex 32750, Monel 400 , Monel 500 , Hastelloy C 276. Most common are Stainless Steel ferrule fittings tubing 45° Elbow Union.

For Dedicated page on Titanium Fittings Union Elbow 45° click here.

For Dedicated page on Duplex 2205 Fittings and Super Duplex 32750 Fittings 45° Elbow Union click here.

Along with Stainless Steel, Inconel 600, Monel 500 , Hastelloy C276 grade unions are most common.


Purpose of Union Elbow 45 degree

To connect two angled pipes or tubes in 45 deg angle with assembly of Nut and Ferrule. Ferrules bites onto the pipes/tubes providing a leak proof connection. It has a Forty Five degree shape so connection is angled type. 45 deg Elbow Unions has double ferrule or twin ferrule on both sides.

45 deg Union Elbow tube fittings

We make Union Elbow 45°

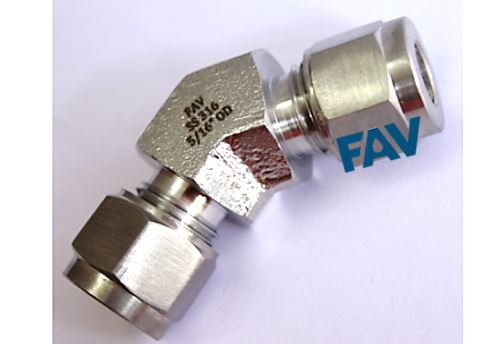

45° Elbow Union Stainless steel ferrule fittings

Union Elbow 45° double ferrule fittings

Size Availability

Tube options

Union Elbow 45 deg ferrule fittings are available in Union Double Ferrule Compression Tube fittings from 1/16″ to 2″ OD Tube and 3 mm OD Tube to 50 mm OD Tube with Double Ferrule &  Nut .

45 DEGREE UNION ELBOW (OD Tube Imperial)




0DF HexA InchL InchH mm



PART No.0D1 Metric0DF HexA InchL InchH mm

Why buy FAV make 45 degree Elbow Unions?

  1. Competitive pricing and fast delivery. We keep spare Nut and Ferrules in stock plus common sizes of 45° Elbow Union.
  2. Easy installation design and procedure – Double Ferrule a Nut provides to most easy installation procedure.
  3. Nuts are silver plated on both sides of our tube fittings
  4. Ferrules are annealed to provide amazing biting performance
  5. Except for the ferrules all other components provide easy re-usability option
  6. Our Stainless steel ferrule fittings do not twist the tube during installation
  7. Heat Number traceability on the body insures right quality of raw material. MTC 3.1 and NACE certification available on request
  8. Standard range from 3000 psi to 6000 psi (ADD BAR). On special cases we do undertake 10000 psi.

Industry Applications

45° Elbow Union are used wherever there are tubes/pipes. Therefore application is widespread with industries including Electrical Equipment, Instrumentation Equipment, Engine & Turbine Manufacturing, Iron & Steel Manufacturing, Metal Industry, Petroleum products, Ship Building, Semiconductor. Almost any industry which has tubes involvement require our range of Double Ferrule compression fittings.

Some Common Sizes for SS Compression Fittings 45 deg Elbow Union are

  1. FAV Stainless Steel 316 45° Elbow Union 1/8” OD tubing
  2. FAV SS 316 Union Elbow 45 deg 1/4” OD tube
  3. FAV SS 304 Elbow Union 45 deg 3/8” OD tubing
  4. FAV Stainless Steel 316 45 deg Elbow Union 1/2” OD nut ferrule
  5. FAV SS316 Instrument 45 degree Elbow 3/4” OD pipe
  6. FAV SS Elbow Union 45 degree 1” OD Compression
  7. FAV 316 SS Elbow 45 degree 6 mm Tube
  8. FAV 304 SS 45 deg Union Elbow 8 mm Diameter Tube
  9. FAV SS 316 Elbow Union 45 degree 10 mm instrument Tube
  10. FAV SS 316 45° Elbow Union 12 mm Ferrule Tube
  11. FAV SS 316 Union 45° Elbow 14mm OD
  12. FAV Stainless Steel 304 Union Elbow 45° 16mm OD
