Reducing Double Female Union Tube Weld fitting- Metal Gasket Face Seal Fittings Part No. UCR Size UCR Size Dimension (mm) M M1 inch inch A B E F F-CDFRU-0804- 1/2 1/4 34.60 6.00 4.35 26.98 7/8-14UNF 9/16-18UNF
Union Cross Tube Butt Weld Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size Dimension (mm) M inch A E L F F-CUC-04- 1/4 54.40 4.35 27.20 12.70 9/16-18UNF F-CUC-08- 1/2 73.87 10.22 36.80 20.63 7/8-14UNF F-CUC-12- 3/4 97.50 15.75 48.80 31.75 1 1/4-18UNF F-CUC-16- 1 102.00 22.10 50.80 42.86 1 1/2-20UNF
Introduction MEDIUM Pressure Hydraulic Lines 25 to 210 bar. For use with fluids in Hydraulic systems Can also be used in air and water. Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems Temperature Range: Continuous: -40°C to +120°C Applicable Standard: Standard: SAE J517 – 100 R5 Construction: Core: Oil and Water resistant Synthetic rubber…
Union TEE Weld Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size Dimension (mm) M inch A E L F F-CUT-04- 1/4 54.40 4.35 27.20 12.70 9/16-18UNF F-CUT-08- 1/2 73.87 10.22 36.80 20.63 7/8-14UNF F-CUT-12- 3/4 97.50 15.75 48.80 31.75 1 1/4-18UNF F-CUT-16- 1 102.00 22.10 50.80 42.86 1 1/2-20UNF
Introduction Low pressure and low impulse hydraulic lines 30 to 110 bar. for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipment’s and machineries/systems. Temperature Range: Continuous: -40°C to +120°C Applicable Standard: Standard: SAE J517 – 100 R3 / EN 854 Construction: Core: Oil resistant Synthetic…

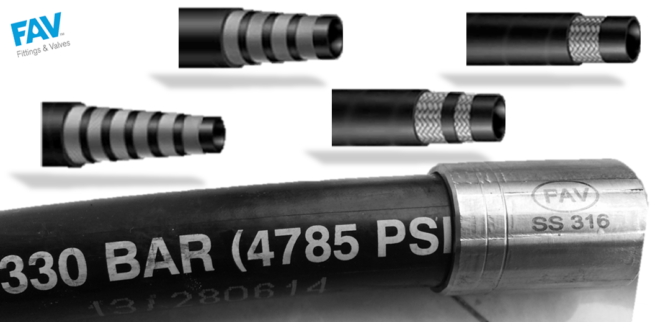

Hoses WE RESELL PARKER , GOODYEAR ,DUNLOP ,POLYHOSE BRAND HOSE. MOST OF THE HOSE ARE AVAILABLE EX-STOCK AND ARE CRIMPED WITH FAV HOSE FITTINGS. We have all types of Hose .Categories of Hoses include 1) High Pressure Hydraulic Hose 2) Medium Pressure Hydraulic Hose 3) Low Pressure Hydraulic Hose 4) General Purpose, Air, and Water…
Union Elbow Metal Face Seal Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size Dimension (mm) M inch L E F F-CEU-04- 1/4 27.20 4.35 12.70 9/16-18UNF F-CEU-08- 1/2 36.80 10.22 20.63 7/8-14UNF F-CEU-12- 3/4 48.80 15.75 31.75 1 1/4-18UNF F-CEU-16- 1 50.80 22.10 42.86 1 1/2-20UNF
Bulkhead Double Male Union Tube Weld Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size Dimension (mm) M Panel Hole Size inch A B E F H F-CBDMU-04- 1/4 56.60 33.70 4.70 19.05 19.05 9/16-18UNF 15 F-CBDMU-08- 1/2 65.30 37.60 10.22 26.98 26.98 7/8-14UNF 23
Reducing Double Male Union Tube Butt Weld Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size UCR Size Dimension (mm) M M1 inch inch A E E1 F F-CDMRU-0804- 1/2 1/4 43.40 10.22 4.57 23.80 7/8-14UNF 9/16-18UNF
Double Male Union Weld Fittings- Metal Gasket Face Seal Fittings Part No. UCR Size Dimension (mm) M inch A E F F-CDMU-04- 1/4 39.40 4.57 15.87 9/16-18UNF F-CDMU-08- 1/2 47.20 10.22 23.80 7/8-14UNF F-CDMU-12- 3/4 62.00 15.70 33.33 1 1/4-18UNF F-CDMU-16- 1 65.80 22.10 41.27 1 1/2-20UNF
