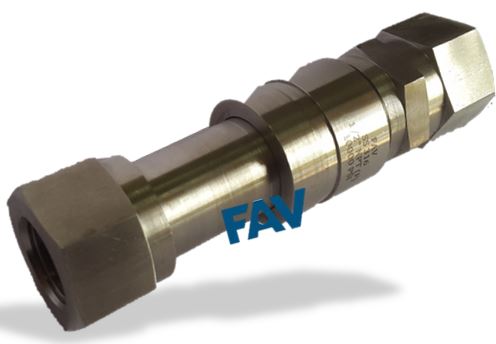

Quick Release Couplings , High Pressure ,10000 psi Quick Disconnect Coupling High Pressure 10000 psi Part No Pressure QRC Size FHPQRCN1 10000 psi 1/8″ NPT F FHPQRCN2 10000 psi 1/4″ NPT F FHPQRCN3 10000 psi 3/8″ NPT F FHPQRCN4 10000 psi 1/2″NPT F FHPQRCN5 10000 psi 3/4″ NPT F FHPQRCN6 10000 psi 1″ NPT F…
Quick Release Coupling, Single Check Valve , Hose X Male Quick Disconnect Coupling Single Check Valve Hose X Male Part No Male Size Hose End D5 D2 D3 D4 L1 L2 L3 L4 L5 L6 HA/F FDSQRCHM1 1/8″ NPT(M) 6.5 17 4.5 3.5 40 8 16 41 21.5 14 14 A/F FDSQRCHM2 1/4″ NPT(M) 8…

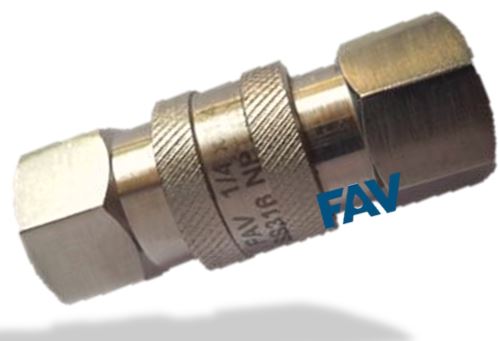

Quick Release Couplings , Straight Through Type Quick Disconnect Couplings Straight Through Types Part No QRC SIZE (D1) D2 D3 L1 L2 L3 H H1 FSQRCN1 1/8″ NPT(F) 17 5 29 16 30 16 A/F 14 A/F FSQRCN2 1/4″ NPT(F) 22 6.5 35 16 32 19 A/F 16 A/F FSQRCN3 3/8″ NPT(F) 25 7 42…
Quick Release Couplings , Double Check Type ,6000 psi Quick Disconnect Coupling Double Check Type 6000 psiWhen plug and socket are separated. The valve of the socket and plug is pushed against the valve seat and closed automatically. There Is no leakage of the fluid. Part No Pressure QRC Size D2 D3 L1 L2 L3…

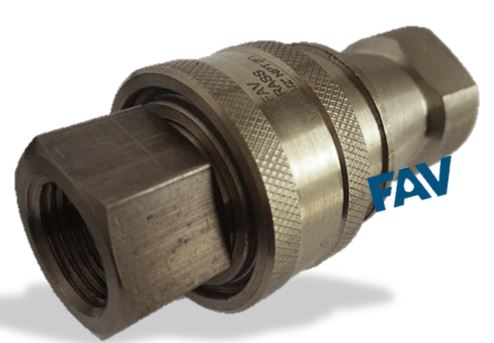

Quick Release Couplings , Double Check Type ,3000 psi Quick Disconnect Couplings Double Check Type 3000 psi Part No Pressure QRC Size D2 D3 L1 L2 L3 L4 L5 L6 L7 L8 H FDQRCM1 3000 psi 1/8″ NPT(F) 16 20 43 35.8 7.5 14 14 30 14.2 15.8 14.0 A/F FDQRCM2 3000 psi 1/4″ NPT(F)…

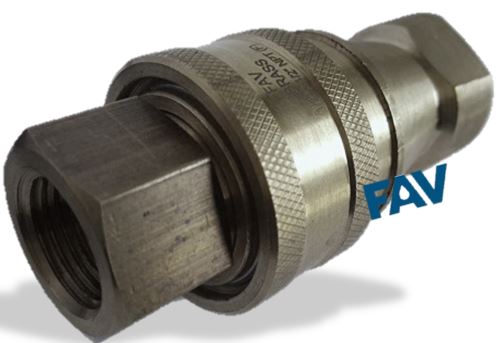

Quick Release Couplings , Double Check Type ,1000 psi Quick Disconnect Couplings Double Check Type 1000 psi Part No Pressure QRC Size D2 D3 L1 L2 L3 L4 L5 L6 L7 L8 H FDQRCN1 1000 psi 1/8″ NPT(F) 16 20 43 35.8 7.5 14 14 30 14.2 15.8 14.0 A/F FDQRCN2 1000 psi 1/4″ NPT(F)…
JIC Plugs, JIC Hydraulic Fittings – Adaptors and Fittings JIC Plugs are parts of our JIC Adaptors and Fittings. We are manufacturers of JIC Hydraulic Fittings in various sizes. JIC hydraulic Adaptors fittings are used with Flaring of 37 degree. FAV range of JIC Plugs work best on high pressure hydraulic applications. JIC Adaptor Fitting…
JIC Sleeve, JIC Tube Sleeves and Nuts – for JIC hydraulic fittings JIC Sleeve are parts of our JIC hydraulic fittings . We are manufacturers of JIC Tube Sleeves and Nuts in Stainless Steel . JIC hydraulic fittings are used with Flaring of 37 degree. FAV range of JIC Sleeve work best on high pressure…
Nut JIC, JIC Tube Nuts and Sleeves – for JIC tubes Nut JIC in sizes 4 JIC (¼”), 6 JIC (3/8”), 8 JIC (1/2”), 12 JIC (3/4”). We are manufacturers of JIC Tube Nuts and Sleeves in Stainless Steel. JIC tube fittings has a 37-degree flared seating surface. Sizes of Tube Nut JIC table for…
JIC Adjustable Fittings, Hydraulic Fittings – for JIC hydraulic fittings JIC Adjustable Fittings are parts of our JIC hydraulic fittings . We are manufacturers of Hydraulic Fittings in Stainless Steel . JIC hydraulic fittings are used with Flaring of 37 degree. FAV range of JIC Adjustable Fittings work best on high pressure hydraulic applications. JIC hydraulic Fitting come…
